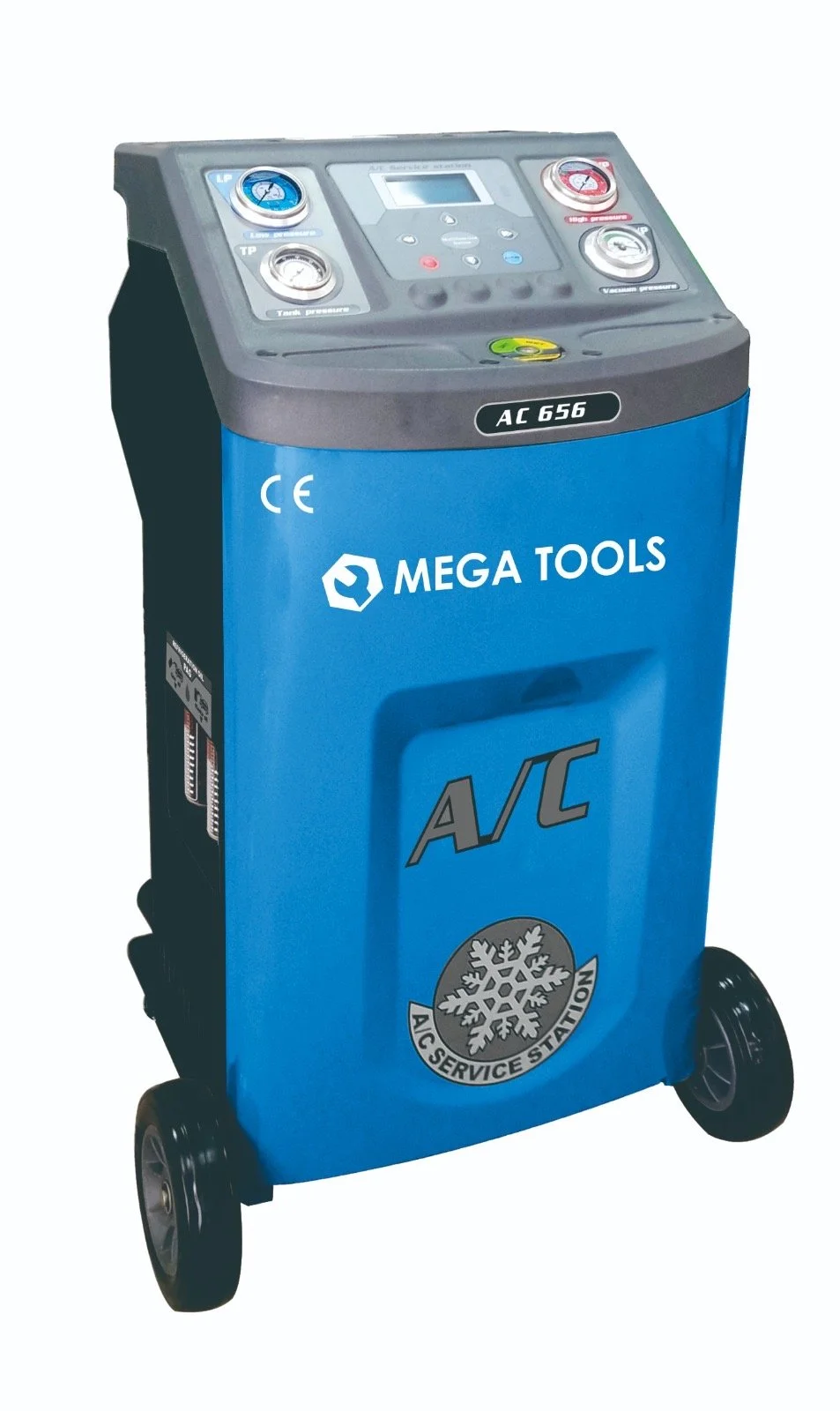

AC656 A/C Recover, Recycle and Recharge Machine

The AC656 is one of the most advanced air conditioning service units for cars. It is designed to carry out the maintenance of R-134a-based air conditioning systems with a minimum of manual intervention. The unit automatically controls every phase of maintenance, including oil and coolant recovery, recycling and refilling without needing direct intervention from a technician. However, the manual mode allows the user to control all aspects individually if so desired. The powerful, two-phase vacuum pump of the ACS 656 assures quick and effective evacuation of the system, it comes equipped with a data base to provide the necessary oil and coolant quantities for the vehicle’s air conditioner. The AC656 also has an integrated printer to create detailed reports.

Features:

  • Quick access or detail mode possible

  • Automated management of recovery and recycling

  • Manual or automated use

  • Multi-phase recycling

  • Programmable vacuum phase

  • Automated re-filling

  • Integrated, guided pressure test for the system

  • Automated oil recovery and filling

  • Automated UV dye injection

  • Automated removal of non-condensable gasses

  • Programmable maintenance

  • Multi-lingual software

  • Intelligent filling quantity control



Specifications

Recovery speed:180~350G/min
Recharge speed:800~1500G/min
Vacuum speed:60L/min
Refrigerant tank available capacity:14 L
Electronic scale range:0~35KG
Oil bottle capacity:300ML
Operating temperature:5~50℃
Voltage： AC220v/50hz/1ph
Max. working pressure：17.5bar
Low-pressure protection： Less than 1 bar
Electronic scale precision：±10g
Electronic scale precision(Frozen oil)：/
Compressor：275w
